Cylindrical fender

  • Cylindrical fender
  •

Cylindrical fender

Product Item : Fendersys-CY

Features:

  1. Various standard size, manufactured according to customer required size;

  2. Easy to install

Applications:

  1. Bulk cargo berthing;

  2. Fishing port;

  3. Yacht port;

  4. General cargo berthing;

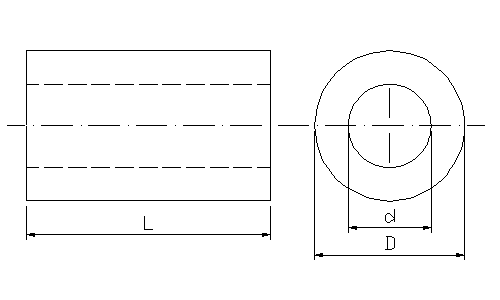

Specifications:









Type

ODmm

IDmm

Max. Length(mm)

CY150×L

150

75

10000

CY200×L

200

100

10000

CY250×L

250

125

10000

CY300×L

300

150

10000

CY400×L

400

200

8000

CY500×L

500

250

8000

CY600×L

600

300

3000

CY700×L

700

350

3000

CY800×L

800

400

3000

CY900×L

900

450

3000

CY1000×L

1000

500

3000

CY1200×L

1200

600

3000

CY1400×L

1400

700

3000

CY1600×L

1600

800

3000

Performance:

R:KN          E:KN.M

RO

RH

40%

50%

40%

50%

CY150X1000

R

30

45

50

73

E

0.9

1.5

1.4

2.3

CY200X1000

R

41

61

65

97

E

65

2.7

2.6

4.3

CY250X1000

R

52

76

82

122

E

2.6

4.2

4.0

6.6

 CY300X100

R

62

91

98

146

E

3.6

6.0

5.9

9.7

CY400X1000

R

83

121

131

195

E

6.5

10.6

10.4

17.2

CY500X1000

R

103

151

164

244

E

10.1

16.4

16.5

27.0

CY600X1000

R

124

182

196

292

E

15

24

23

38

CY700X1000

R

145

212

229

341

E

20

32

31

53

CY800X1000

R

165

242

262

390

E

26

42

41

69

CY900X1000

R

186

273

295

439

E

32

53

53

87

CY1000X1000

R

206

303

328

488

E

40

65

64

108

CY1200X1000

R

252

370

393

488

E

61

65

92

108

CY1400X1000

R

292

430

459

683

E

80

130

126

213

CY1600X1000

R

334

490

525

781

E

107

173

164

276

Note: Tolerance±10%

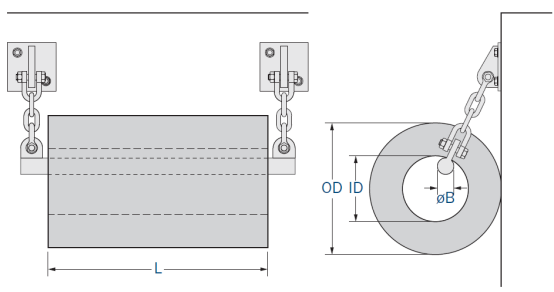

Installations:
